Product Description:

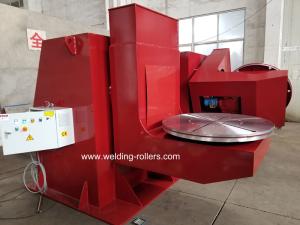

1. L shape welding positioner with ±360 degree tilting angle and ±360 degree rotation angle.
2. Lifting stroke is as per request for different shape work piece.
3. You also can get the video via youtube for this machine.
4. Voltage: 380V 50Hz 3Phase
Features:
1.The worktable is tilted by motor, accurate and reliable positioning.
2. It makes the workpiece in perfect position for welding.
3. It proves welding quality and lessens welding labor and improves productivity.
4. The worktable adopts AC frenquency conversion speed, large range and variable speed and high precision and weld at need position.
Technical Parameters: | Model | L-10 |
| Loading Capacity | 10Ton maximum |
| Table diameter | 1000mm |
| Rotation power | 3kw |
| Tilting power | 4KW |
| Control way | Remote hand control 8m cable |
| Foot pedal control | Foot pedal switch 6m cable. |
| Voltage | 380V~480V 50/60Hz 3Phase |
| Certificates | CE |
| Warranty | One year |
| Color | Customized |
Applications:
1. Rotation 360 and tilting 360 for different shape work piece.
2. Lifting type L shape welding positioner is also available if interested.
3. Remote hand control and foot pedal control all available.
4. European standard work manual and CE certificates are all supported.
Support and Services:
1. All our equipments have passed CE test and get the CE certificates.
2. We can design the special equipments according to your request.
3. We provide 12month guaranty period for the whole machine quality.
4. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
5. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
6. Engineer service on user premises is also available for necessary.
Packing and Shipping:
1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
4. If only one set welding turn table equipment ,we will package in wooden case.
5. If several sets,then we will package in 20GP containers directly.
6.It will be placed in an anti-rust coating for extra protection and then covered with a thick foam sheet.
7.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.
FAQ: Q1: What is the Brand Name of this product?
A1: The Brand Name of this product is Weldsuccess.Q2: Where is the Place of Origin of this product?
A2: The Place of Origin of this product is China.Q3: What is the Certification of this product?
A3: The Certification of this product is ISO/CE/CO.Q4: What is the Minimum Order Quantity of this product?
A4: The Minimum Order Quantity of this product is 1 set.Q5: How long is the Delivery Time of this product?
A5: The Delivery Time of this product is 15 working days after received your payment.
